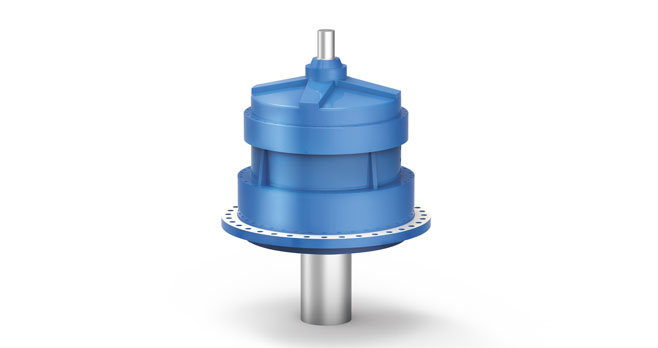

The MPT (TM) series of vertical mill gearboxes developed by NGC is a new iteration that combines the advanced modular technology of NGC's MP industrial planetary standard gearbox platform with specific designs for the working conditions of spiral vertical mining mills (tower mills). This series of products can adapt to the special environmental conditions of mines, and meet the specific structural requirements of tower mill mainframes. The products offer high reliability, stable operation, and easy installation and maintenance, providing a strong guarantee for the safe and effective operation of mining tower mills and the stable production of mines.

Features:

Based on a standard platform, combining modular and special designs for greater economy and versatility;

Multi-floating equal load mechanism design enhances load-bearing capacity;

Reasonably distributed torque range for economy and applicability;

Maintenance-free sealing structure improves product maintainability;

Unique gear modification technology improves meshing performance, making transmission smoother and noise lower.

Main Technical Parameters:

Torque range: 85–4,300 (kN.m)

Speed ratio range: 22–70

Installed power range: 132–2,250 (kW)

Main Fields of Application:

Compatible with tower mills, which are widely used in the fine grinding of non-ferrous metals, gold, and non-metallic minerals.
